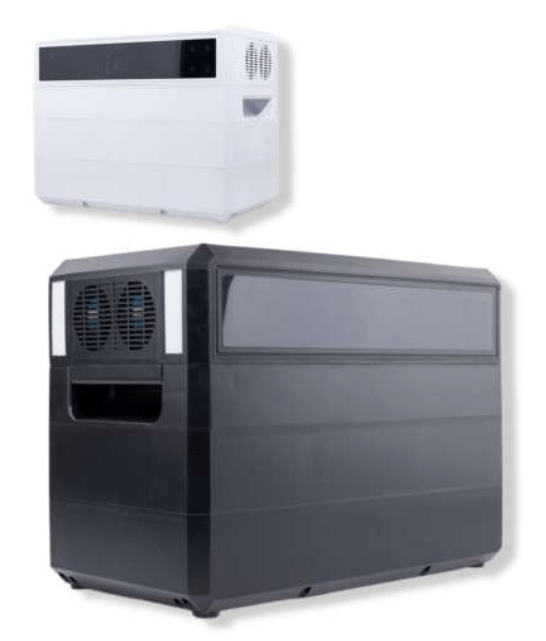

GY-2000W

Battery: Lithium Iron Phosphate
– Model: 33140. 15AH/section
– Configuration: 16 series, 3 parallel, total 48 sections
– Capacity: 2300WH (2.3 degrees of electricity)
Shell Material: ABS
Input Specifications
– DC5521 Input:
IOV-45V / LOA, supports pv MPPT tracking.
Shared with XT60; cannot be inserted at the same time.
Power Range: 50-400W.
– XT60 Input:
IOV-45V / MAX 400W, supports PV MPPT tracking.
Shared with DC5521; cannot be inserted at the same time.
Power Range: 50-400W.
– Pin AC Input:
Voltage: 180v-250V.
Rated Power: 1000W
Output Specifications
– AC Output:
Voltage: AC 220V
Power: 2000W, 50Hz, Pure Sine Wave.
– DC Output:
Cigarette Lighter + DC5521 Ports (2 interfaces): 12V-10A / 120W
Total Power.
– USB Ports:
USB-I (QC3.O): MAX 20V-3A (60W). When TYPE-C2 and USB-AI are
connected simultaneously, total output is 5V/5A.
USB-2 (QC3.O): MAX 12V-1.5A (18W).
– TYPE-C Ports:
TYPE-CI: PD MAX 12V/1.5A (18W), PD MAX 12V/2.5A (30W).
TYPE-C2: PD MAX 20V/5A (IOOW). When TYPE-C2 and USB-AI are
connected simultaneously, total output is 5V/5A
– Lighting: LED Light, 4W high brightness, with 2-level dimming and SOS
flash.
Colour Options: White, Silver Grey, Black
